Battery

• LiFePo4 Lithium-iron phosphate

• 48V, 1440Wh

Power Inverter (120V AC) Output

• Waveform: Pure Sine Wave (PSW)

• Output: 120V RMS

• Continuous AC Power: 1800W

• Peak Surge: 3600W

• Frequency: 50/60Hz (user-selectable)

• Cooling Fan: Thermally Controlled

• 120V AC Outlets: 4

• No-load current: <0.6A

• Short-circuit protected: Yes

• Over-voltage protected: Yes

• Under-voltage protected: Yes

UPS

• AC Input Voltage: 120V AC

• Input Frequency: 50/60Hz

• Max Input Voltage: 138V AC

• Max Input Current: 15A AC

• Input Waveform: Pure Sine Wave

• Input Socket Type: 15A Pig-tail

• Switching Time: ≤10ms

• Mains Low Voltage Switch: 96V

• Mains Low Voltage Recovery: 102V

• Mains High Voltage Switch: 138V

• Mains High Voltage Recovery: 132V

Solar Charge Controller

• Type: MPPT

• Input: Anderson power-pole

• Input Voltage: 11-70V DC

• Input Current: 25A

• Over-Voltage Protection: 77V

• Max Solar Input: 600W

• Vehicle DC Input: 8.5A

• Reverse-polarity protected: Yes

AC Charger

• Input Voltage: 100-135V

• Input Frequency: 50/60Hz

• AC Charger Output: 1000W (20A @50V)

DC Charger

• Fuse: 30A

• Length: 5 Feet

• Acceptable Input: 120V AC (via voltage converter), 12V DC, Solar Panels, Wind Turbine, Hydro-electric

• Solar Controller: MPPT

• Solar Input: 600W Max

• Anderson Connectors: Built-in

DC Socket (Output)

• Regulated 12V Socket

• 12VDC Socket Count: 1

• twist-lock

• Socket Rated Output: 10A

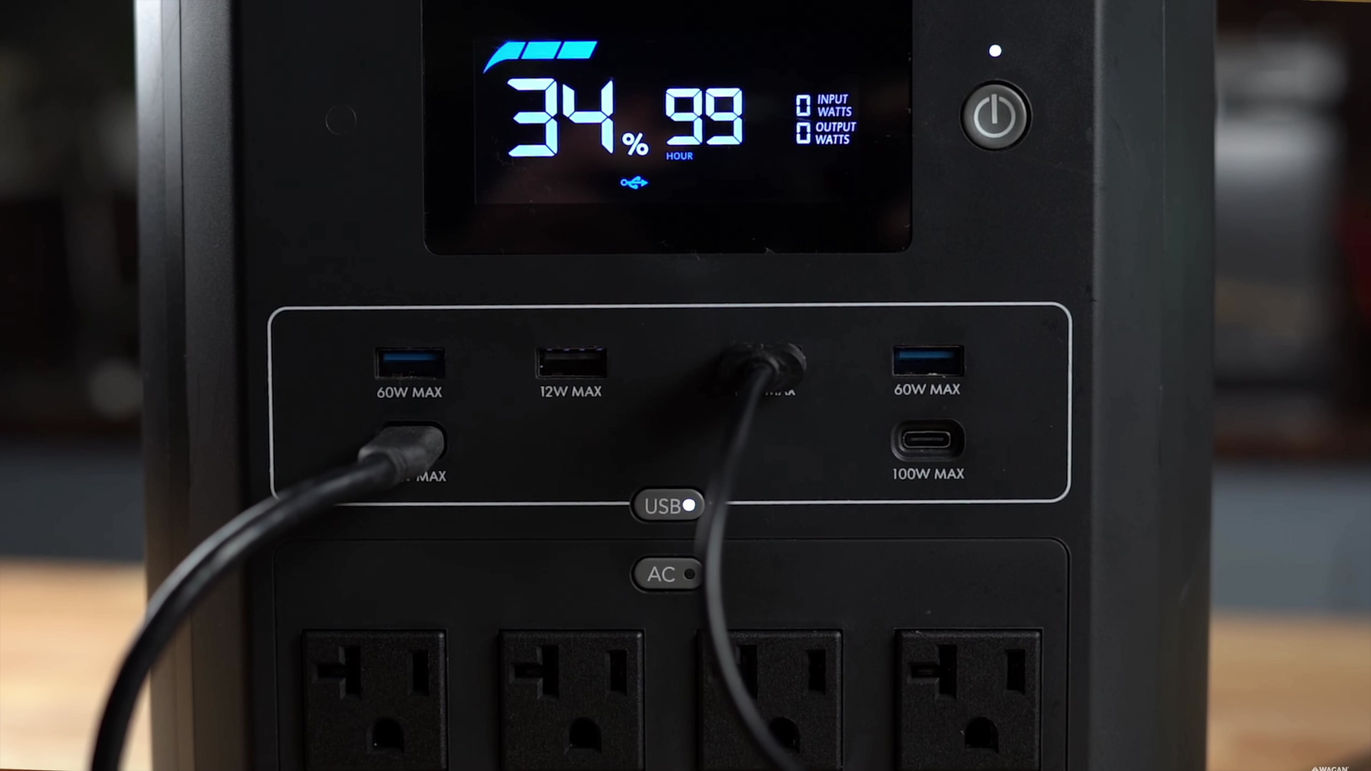

USB Power Ports

• USB Power Port Count: 6

• USB-C: 2 ports    -PD 100W (5A @20V)

• USB-A (Fast-Charge): 2 ports    -60W (3A @20V)

• USB-A (standard): 2 ports    -12W (2.4A @5V)

Build Specs

• Pass Through Charging: Yes

• AC Charger: Included

• DC Charger: Included

• Operating Temperature: 32°F - 104°F (0°C - 40°C)

• Storage Temperature: -4°F - 122°F (-20°C - 50°C)

• Operating Humidity: 10% - 90%

• Storage Humidity: 5% - 95%

• Weight: 39.2 lbs.

• Dimensions (LxWxH): 15.6 x 9 x 11.5 (inches)

• Display: Full Color, Full operational details

• UPC: 08436708837-6

• MFG: EL8837

• Warranty (USA): 2 Years

Certifications & Protections

• UL Certification: Battery

• Over-voltage Protection

• Over-charge Protection

• Short circuit Protection

• Reverse Polarity

• Overload Protection

WARNING: This product can expose you to chemicals including DEHP, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

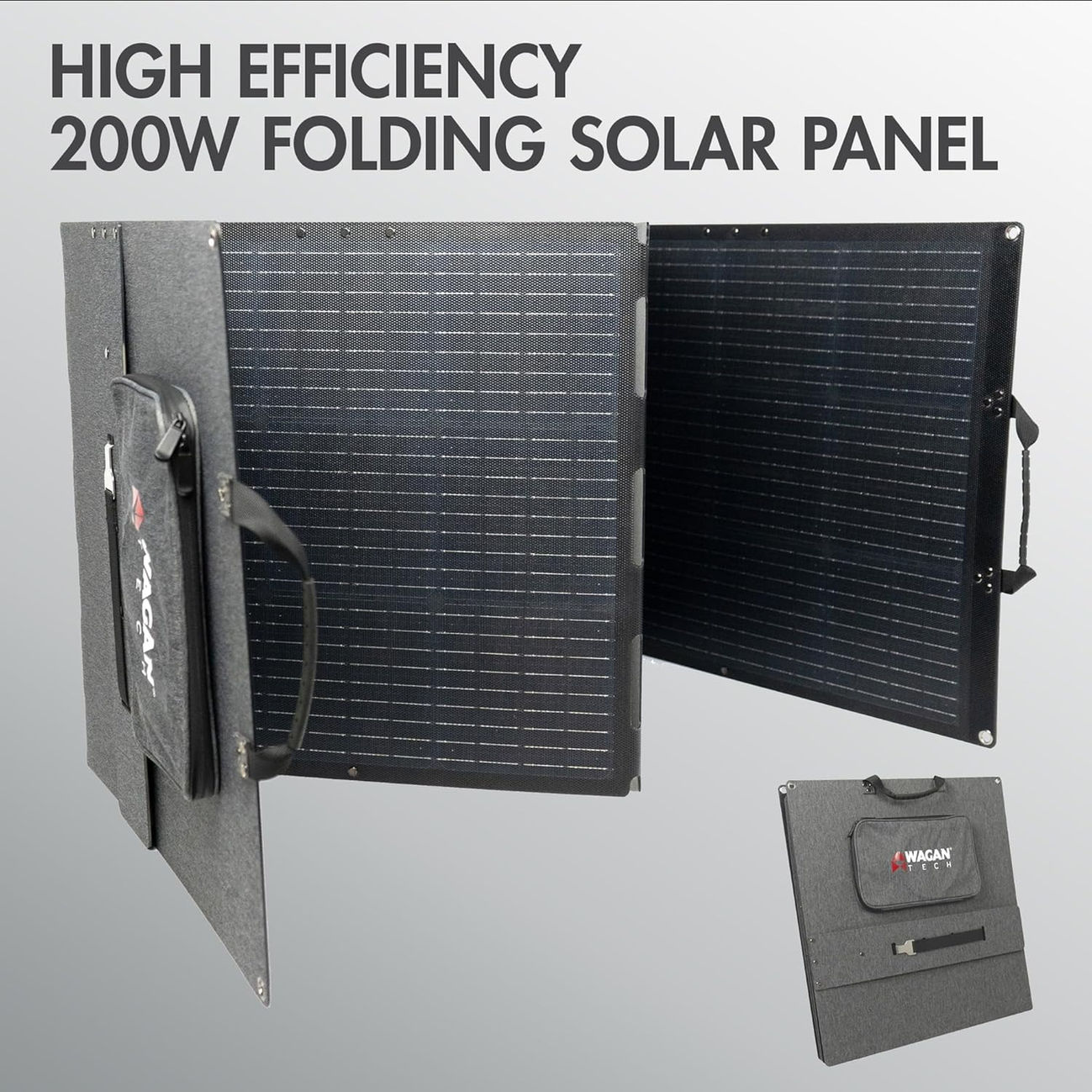

• Power Cable Length: 78"

• Panel Open Dimensions (inches): 21.3 x 89.1 x 2.0 in

• Panel Closed Dimensions (inches): 22.5 x 21.3 x 2.0 in

• Panel Composition: Monocrystalline, ETFE Matte surface

• Panel Efficiency: 23%

• Max Wattage: 200 Watts

• Solar Controller: No

• Unit Weight: 12.5 lbs.

• Open Circuit Voltage / Voc: 24.1V

• Max Power Voltage / Vmp: 20.5V

• Short Circuit Current / Isc: 10.3A

• Max Power Current / Imp: 9.8A

• Operating Temperature Range: 15 - 150ºF

• Item Number (MPN): EL8215

• UPC: 08436708215-2

• Warranty: 2 years
